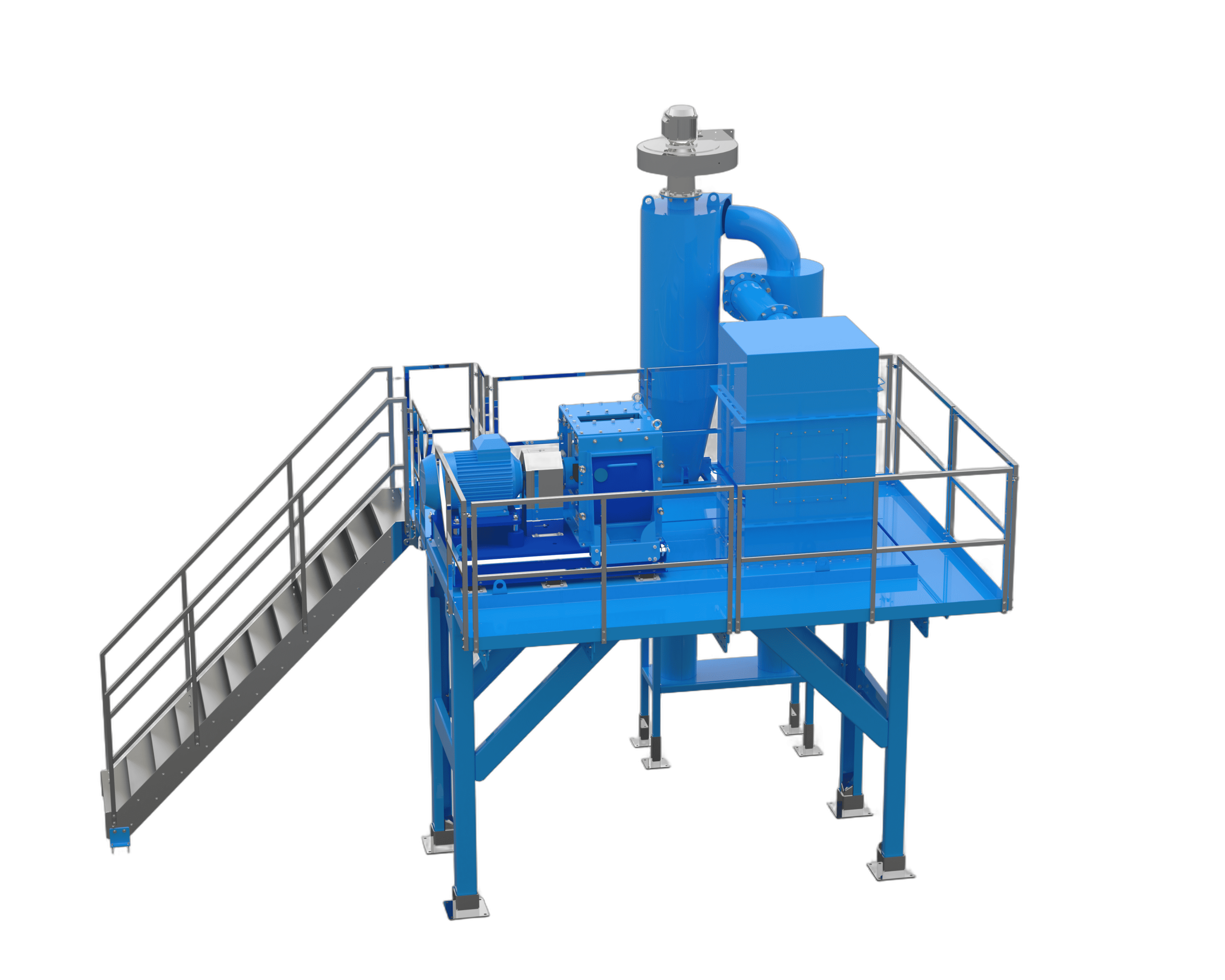

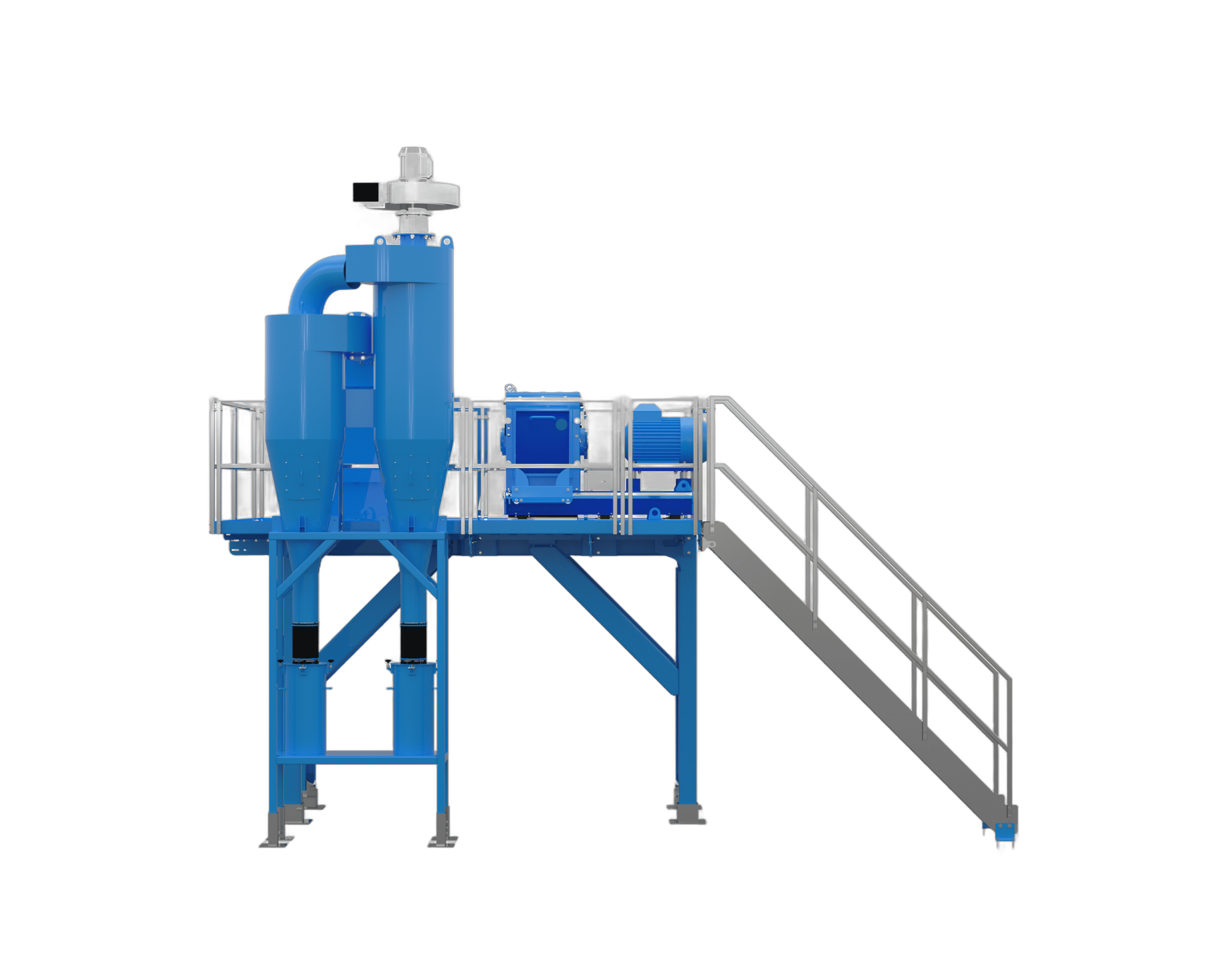

Milling Plant

Delivers fine and uniform meat and bone meal through high-efficiency hammer crushing, maximizing digestibility, nutritional value, and feed quality.

Get a Quote

Overview

The milling plant we manufacture is designed for efficient size reduction. Raw materials enter the crushing chamber through the top inlet, where they are impacted and shattered by high-speed hammers mounted on a rotating rotor. Materials with particle sizes smaller than the screen aperture pass through the screen immediately.

Meanwhile, air surrounding the rotor rotates in the same direction, creating a centrifugal effect. Particles that have not been sufficiently reduced are carried along with the airflow but are not impacted by the hammers. As these materials and air reach the recirculating groove, their direction is altered, redirecting the material back into the hammering zone. This ensures that the material is repeatedly impacted until it meets the required particle size and passes through the screen.

This mechanism significantly enhances crushing efficiency by ensuring thorough and repeated impact within the chamber.

More About the Solution

Improve Resource Utilization

Animal protein (meat and bone meal) is a high-protein feed ingredient derived from animal bones and meat by-products. By pulverizing the meat and bone meal, its surface area is increased, which facilitates the action of digestive enzymes and the release of nutrients. The resulting fine powder is more easily digested and absorbed by animals, thereby significantly improving resource utilization efficiency.
Improving Product Quality

Pulverizing meat and bone meal helps achieve a uniform particle size, which enhances the homogeneity and stability of feed mixtures. In addition, the grinding process removes impurities and indigestible components from the material, thereby improving the overall quality of the feed.
Enhancing Nutritional Value

Pulverizing animal protein (meat and bone meal) promotes the release of soluble proteins, thereby increasing its nutritional value. This improvement contributes to reducing feed costs and minimizing feed waste.

Precision Milling Starts Here
Our high-speed hammer mill ensures accurate particle size reduction, improving the consistency of meat and bone meal for animal feed applications.

Get a Quote
Maximize Nutrient Absorption
Pulverized feed particles are easier to digest, helping animals absorb more nutrients while reducing feed waste and cost.

Get a Quote
Built for High Efficiency and Durability
Featuring a recirculating groove design and centrifugal airflow system, our milling unit achieves high throughput with stable performance and low wear.

Get a Quote
Customize Your Milling Solution
From capacity to construction material, we provide fully customizable crushing units to match your specific process needs and production scale.
