Animal fat cooking (Fat Rendering Plant) equipment is mainly used to process raw materials such as slaughter by-products, animal fats and viscera through thermal melting, solid-liquid separation and refining treatment, converting them into usable animal fats and protein residues. For slaughterhouses, feed-oil plants and entrepreneurial investors, selecting a reliable manufacturer of animal fat rendering equipment can not only improve the utilization rate of by-products, but also generate steady revenue from sales of oil and meat-and-bone meal.

Main Functions of Animal Fat Cooking (Fat Rendering Plant) Equipment

Animal fat cooking (Fat Rendering Plant) equipment generally consists of raw-material pretreatment, melting-extraction, oil-residue separation, environmental-protection treatment and automatic control systems. It can process raw materials including lard, tallow, chicken-duck fat and slaughter by-products in continuous or batch mode to realize oil recovery and residue resource utilization.

Its core functions are as follows:

• Improve oil yield: Temperature-controlled melting fully ruptures fat cells and raises oil recovery efficiency.
• Stabilize product quality: Feed-grade or industrial-grade animal fat can be obtained after cooking (Fat Rendering Plant), separation and filtration.
• Cut labor costs: The PLC control system reduces manual operations and enhances production stability.
• Meet environmental-protection requirements: Equipped with waste-gas condensation, spraying and deodorizing units to lower odor emission and pollution risks.
• Boost by-product value: Convert otherwise-disposed slaughter by-products into saleable goods such as oil and meat-and-bone meal.

Typical Process Flow

Common processes for animal fat cooking (Fat Rendering Plant):

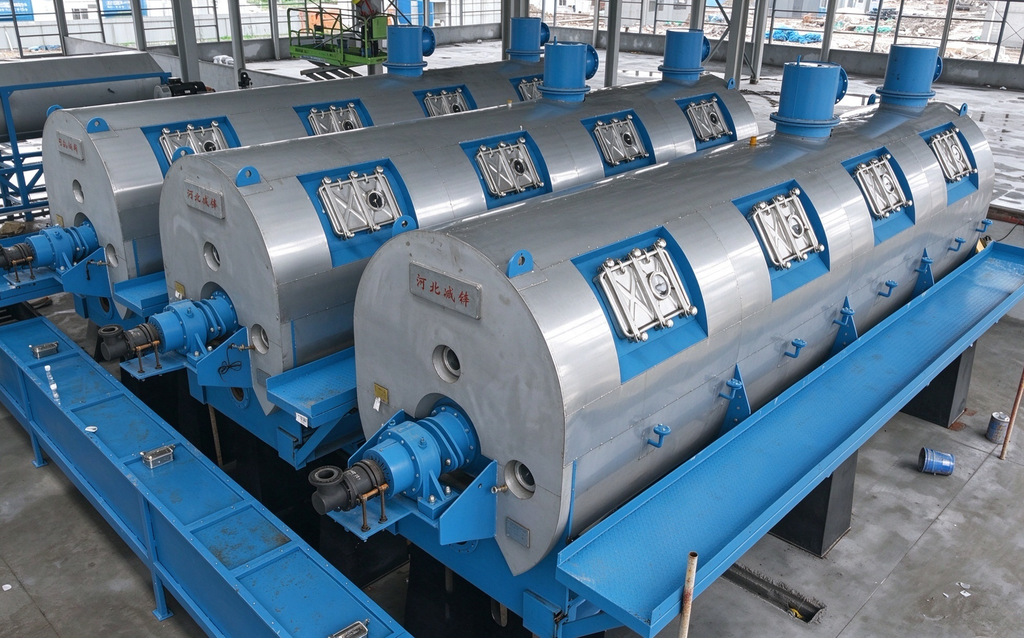

Raw material crushing → Conveying and feeding → High/low-temperature melting → Pressing or centrifugal separation → Crude-oil filtration → Oil storage → Residue drying → Environmental-protection treatment.

Process configurations vary with raw-material types. Slaughter by-products usually have high fat content and suit continuous melting. If feed-oil raw materials contain high moisture and impurities, stronger pretreatment and oil-water separation capacity are required.

Profit Calculation: Slaughter By-Products and Feed-Grade Oil

The calculations below are for reference only. Actual profit is affected by raw-material price, oil yield, oil price, residue price, energy consumption, labor, environmental-protection costs and local policies. On-site project calculation is needed for accurate figures.

Simplified calculation formula:

Profit per ton = Oil revenue + Meat-and-bone-meal revenue − Raw-material cost − Energy & labor cost − Environmental-protection cost − Equipment depreciation − Transportation & warehousing cost

Taking slaughter by-products as an example: with low raw-material cost, stable oil yield and reliable downstream sales channels for oil and meat-and-bone meal, profit per ton is generally higher than that from low-fat feed-oil raw materials. Profit margins will shrink if raw-material prices rise or environmental-protection investment increases.

Reference profit for slaughter by-products and feed-grade oil:

Raw Material Type	Reference Output & Price Basis	Reference Profit per Ton
Slaughter by-products	Oil yield: approx. 30%-45%; animal oil: RMB 7,000-7,400 / ton; meat-and-bone meal: RMB 5,000-6,000 / ton	Approx. RMB 400-800 / ton

Key Points for Equipment Selection

When choosing a manufacturer of animal fat rendering equipment, focus on the following indicators:

• Daily processing capacity: Select specifications of 5 t, 10 t, 20 t or above according to raw-material supply stability.
• Process adaptability: Different configurations are needed for slaughter by-products, animal fats and viscera.
• Actual oil-yield performance: Refer to real-project oil-recovery data rather than theoretical parameters only.
• Environmental-protection configuration: Waste-gas, waste-water and odor-treatment capacity directly determines long-term project operability.
• Automation level: Automatic feeding, temperature control and separation reduce labor dependence.
• After-sales service: Capabilities in installation, commissioning, training, spare-parts supply and process optimization are equally important.

Liede Rendering Equipment is a brand under Chengzhu Group, specializing in R&D, manufacturing and service of animal fat cooking (Fat Rendering Plant) equipment. Targeting slaughterhouses, feed-oil plants and entrepreneurial investors, Liede Rendering Equipment delivers turn-key solutions covering process design, equipment configuration, installation & commissioning and operational support.

Its equipment applies to resource utilization of slaughter by-products, feed-grade oil production and animal-fat recovery. Production lines can be customized according to raw-material properties, site conditions and environmental-protection requirements, helping customers lift oil-recovery efficiency and production stability while controlling investment and energy consumption.

Application Scenarios

• Slaughterhouses: Process pig, cattle, sheep and poultry by-products to recover oil and produce meat-and-bone meal.
• Feed-oil plants: Turn animal fats and by-products into feed-grade oil and protein raw materials.
• Entrepreneurial investment projects: Realize by-product value-adding via stable raw-material sources and downstream sales channels.

Returns of an animal fat cooking (Fat Rendering Plant) project do not depend solely on equipment price. They are also determined by raw-material sourcing capability, process matching degree, environmental-protection compliance and downstream sales system. Enterprises planning to enter this industry are advised to clarify daily processing capacity, raw-material type, local environmental-protection requirements and target product grade before conducting equipment configuration and investment calculation.
